Heavy duty encoder Push-pull complementary output S58 solid shaft encoder socket at side
Quick description of S58 solid shaft encoder
Brand: HENGXIANG
Output phase: Phase A+,B+,Z+ , A- B- Z-
Protection grade: IP50 ; IP65
Consumption current: 100mA MAX
Top response frequency: 300KHZ
Insulation resistance: 10MΩ
External diameter: 58mm
Installation dimension: diameter 48mm
Encoder type: Incremental encoder
Why choose “HENGXIANG” encoder ?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.

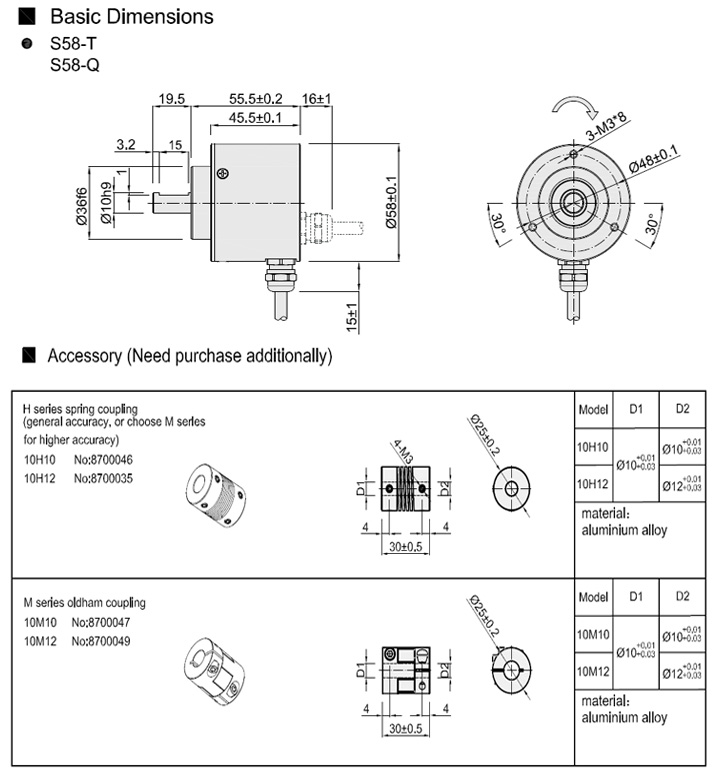

Product Information of S58 series
| Shaft length | 19.5mm |
| Solid Shaft diameter | 10mm(D shape) |
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600; |
| 700;720;800;900;1000;1024;1200;2000;2048;2500;5000 |
| | 8192;10000；11520；16384；20000；23040 |
| Output phase | Phase A+,B+,Z+ , A- B- Z- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from back |
| Cable out from side |
| Socket out from side |
| Socket out from back |
| Output mode | NPN Collector open circuit output |
| Voltage output |
| Push-pull output |
| Difference output | Long line drive (26LS31) |
| compatible RS422 |
| Long line drive (RT7272) |
| Protection grade | IP50 ; IP65 |
| Cable length | 1M (cable length could be added appropriately by |
| require, but it need payment individually) |
| Consumption current | 100mA MAX |
| Shaft Material | Stainless steel |
| Shell Material | die cast aluminum |
| Cable length | 1000mm(cable with shielding) |
| Certification | CE |
| package | Carton box |
Packing Details
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
Advantage of “HENGXIANG” encoder factory
- Over 18 years encoder production experience
- More than 20 years experienced engineers
- Professional working team
- High quality standard
- Quick Response time
- Utility Model Patent Certificate
- Own brand and unique brand
- CE certification for all models
- Prompt delivery date
- 100% full inspection before shipment
Regarding Connecting Coupling:
There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type
1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.
2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.
3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.
4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.
5. Here are some coupling part number, please carefully check before ordering.
4H4
6H6
6H8
8H8
8H10
6M6
6M8
8M8
8M10
